18N25

18A 250V N-CHANNEL POWER MOSFET

UNISONIC TECHNOLOGIES

18N25 Features

* RDS(ON) < 0.24 Ω @ VGS=10V, ID=9.0A

* High switching speed

* SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 18N25L-TA3-T 18N25G-TA3-T 18N25L-TF1-T 18N25G-TF1-T 18N25L-TF2-T 18N25G-TF2-T 18N25L-TF3-T 18N25G-

18N25 General Description

The UTC 18N25 is a N-channel enhancement mode power MOSFET using UTC’s advanced planar stripe and DMOS technology to provide perfect performance. This technology can withstand high energy pulse in the avalanche and commutation mode. It can provide minimum on-state resistance and high switching speed.

18N25 Datasheet (461.49 KB)

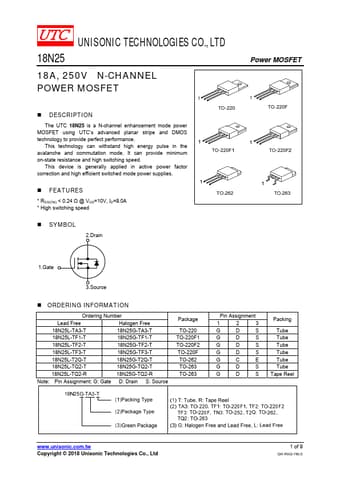

18N25 Datasheet Preview — Preview of 18N25 PDF

Datasheet Details

Part number:

18N25

Manufacturer:

UNISONIC TECHNOLOGIES

File Size:

461.49 KB

Description:

18a 250v n-channel power mosfet.
