18N20

N-CHANNEL POWER MOSFET

UTC

18N20 Features

* RDS(ON) < 0.20Ω @ VGS=10V, ID=9.0A

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen-Free 18N20L-TA3-T 18N20G-TA3-T 18N20L-TF3-T 18N20

18N20 General Description

These kinds of n-channel power MOSFET field effect transistor have low conduction power loss, high input impedance, and high switching speed, Linear Transfer Characteristics, so can be use in a variety of power conversion applications. The 18N20 suitable for resonant and PWM converter topologies.

18N20 Datasheet (242.37 KB)

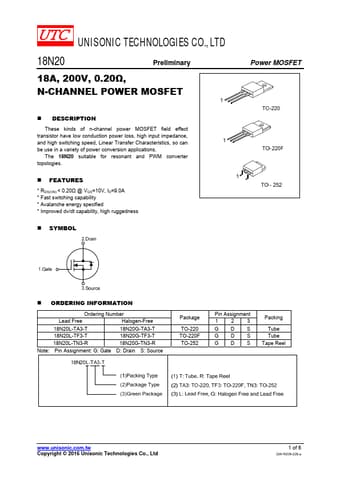

18N20 Datasheet Preview — Preview of 18N20 PDF

Datasheet Details

Part number:

18N20

Manufacturer:

UTC

File Size:

242.37 KB

Description:

N-channel power mosfet.
