10N60-HC Datasheet - UTC

N-CHANNEL MOSFET

10N60-HC Features

* RDS(ON) < 0.7 Ω @ VGS =10V, ID = 5.0A

* Fast switching

* Improved dv/dt capability

* SYMBOL Power MOSFET

* ORDERING INFORMATION Ordering Number Lead Free Halogen-Free 10N60L-TF3-T 10N60G-TF3-T 10N60L-TF3T-T 10N60G-TF3T-T Note: Pin Assignment: G: Gate D: Drain S: Sourc

10N60-HC General Description

The UTC 10N60-HC is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics. This power MOSFET is usually used at high speed switching applications in powe.

10N60-HC Datasheet (480.36 KB)

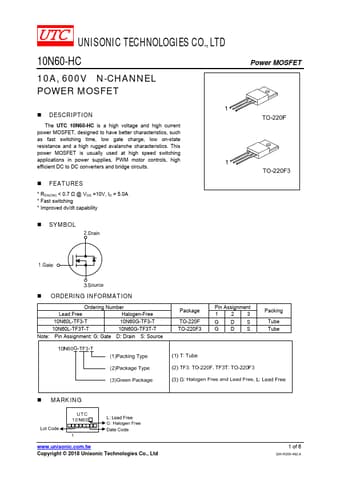

Preview of 10N60-HC PDF

Datasheet Details

Part number:

10N60-HC

Manufacturer:

UTC

File Size:

480.36 KB

Description:

N-channel mosfet.
