10N60-TC - N-CHANNEL MOSFET

10N60-TC Description

UNISONIC TECHNOLOGIES CO., LTD 10N60-TC Power MOSFET 10A, 600V N-CHANNEL POWER MOSFET * .
The UTC 10N60-TC is a high voltage and high current power MOSFET, designed to have better characteristics, such as fast switching time, low gate charg.

10N60-TC Features

* RDS(ON) ≤ 0.8 Ω @ VGS=10V, ID=5.0A
* Fast switching
* Improved dv/dt capability 1 TO-220F3 1 TO-263
* SYMBOL 2.Drain 1.Gate 3.Source
* ORDERING INFORMATION Ordering Number Lead Free Halogen-Free 10N60L-TA3-T 10N60G-TA3-T 10N60L-TF1-T 10N60G-TF1-T 10N60L-TF2-T 10N

10N60-TC Applications

* in power supplies, PWM motor controls, high efficient DC to DC converters and bridge circuits. 1 TO-220 1 TO-220F 1 TO-220F1 1 TO-220F2

📥 Download Datasheet

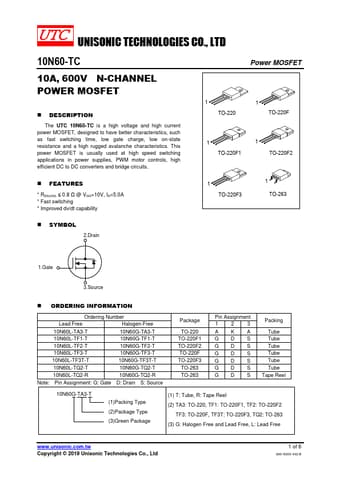

Preview of 10N60-TC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
10N60-TC
Manufacturer
UTC
File Size
281.49 KB
Datasheet
10N60-TC-UTC.pdf
Description
N-CHANNEL MOSFET
