LM39102 - 1A LOW-VOLTAGE LOW-DROPOUT REGULATOR

Datasheet Summary

Description

The UTC LM39102 is a low-dropout linear voltage regulator that provide low-voltage, high-current output.

The UTC LM39102 can be used in a wide field because of Adjustable Output.

UTC LM39102 is fully protected with over current limiting, thermal shutdown, and reversed-battery protection.

FEATU

Features

  • S.
  • Adjustable output voltages refer to 1.24V.
  • Dropout Voltage 410mV at 1A output Ideal for 3.0V~2.5V conversion Ideal for 2.5V~1.8V or 1.5V conversion.
  • ON/OFF control function.
  • 1% initial accuracy.
  • Built-in current limiting and thermal shutdown.
  • Reversed-battery protection.
  • Reversed-leakage protection.
  • Fast transient response SOP-8 HSOP-8.

📥 Download Datasheet

Datasheet preview – LM39102

Datasheet Details

Part number LM39102
Manufacturer UTC
File Size 238.22 KB
Description 1A LOW-VOLTAGE LOW-DROPOUT REGULATOR
Datasheet download datasheet LM39102 Datasheet
Additional preview pages of the LM39102 datasheet.

📁 Similar Datasheet

  • LM39102 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39100 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM39101 - 1A Low-Voltage Low-Dropout Regulator (HTC)
  • LM391 - Audio Power Driver (National Semiconductor)
  • LM3911 - Temperature Controller (National Semiconductor)
  • LM3914 - Dot/Bar Display Driver (National Semiconductor)
  • LM3914 - Dot/Bar Display Driver (Texas Instruments)
  • LM3915 - Dot/Bar Display Driver (National Semiconductor)
  • LM3915 - Dot/Bar Display Driver (Texas Instruments)
  • LM3915N - Dot/Bar Display Driver (Texas Instruments)
Other Datasheets by UTC
  • LM393 - DUAL DIFFERENTIAL COMPARATOR
  • LM393-Q - DUAL DIFFERENTIAL COMPARATOR
  • LM317 - ADJUSTABLE VOLTAGE REGULATOR
  • LM317A - MEDIUM CURRENT 1.2V TO 37V ADJUSTABLE VOLTAGE REGULATOR
  • LM317L - LOW CURRENT 1.25V TO 37V ADJUSTABLE VOLTAGE REGULATOR
  • LM317M - MEDIUM CURRENT 1.2V TO 37V ADJUSTABLE VOLTAGE REGULATOR
  • LM317S - HIGH CURRENT 1.3V TO 37V ADJUSTABLE VOLTAGE REGULATOR
  • LM318 - HIGH SPEED OPERATIONAL AMPLIFIER

Full PDF Text Transcription

Click to expand full text

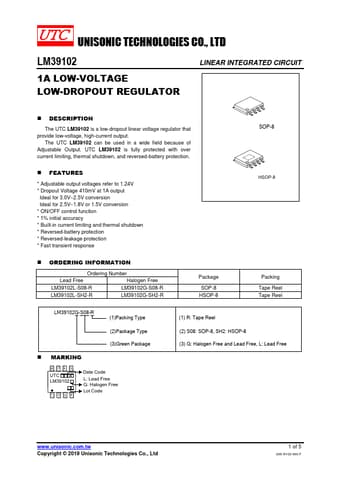

UNISONIC TECHNOLOGIES CO., LTD LM39102 LINEAR INTEGRATED CIRCUIT 1A LOW-VOLTAGE LOW-DROPOUT REGULATOR  DESCRIPTION The UTC LM39102 is a low-dropout linear voltage regulator that provide low-voltage, high-current output. The UTC LM39102 can be used in a wide field because of Adjustable Output. UTC LM39102 is fully protected with over current limiting, thermal shutdown, and reversed-battery protection.  FEATURES * Adjustable output voltages refer to 1.24V * Dropout Voltage 410mV at 1A output Ideal for 3.0V~2.5V conversion Ideal for 2.5V~1.8V or 1.
