M2120 - OPERATIONAL AMPLIFIER

M2120 Description

UNISONIC TECHNOLOGIES CO., LTD M2120 LINEAR INTEGRATED CIRCUIT OPERATIONAL AMPLIFIER WITH SWITCH * .
The UTC M2120 is a dual operational amplifier of 2-INPUT and 1-OUTPUT with analog switch.

M2120 Features

* Analog Switch Function
* Operating Voltage: ±2.5V ~ ±18V
* Slew Rate: 1.2V/µs typ.
* Wide Unity Gain Bandwidth: 3.5 MHz typ.
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free M2120L-S08-R M2120G-S08-R Package SOP-8 Packing Tape Reel
* MARKING www. uniso

📥 Download Datasheet

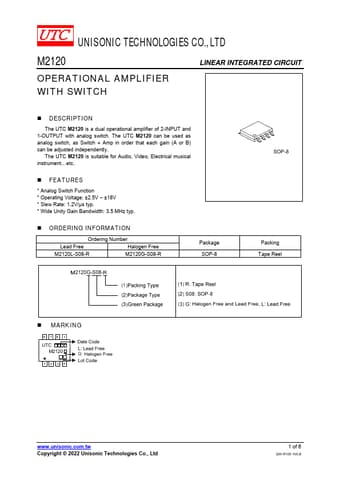

Preview of M2120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M2120
Manufacturer
UTC
File Size
383.29 KB
Datasheet
M2120-UTC.pdf
Description
OPERATIONAL AMPLIFIER
