M2125 - SINGLE-SUPPLY OPERTIONAL AMPLIFIER

M2125 Description

UNISONIC TECHNOLOGIES CO., LTD M2125 LINEAR INTEGRATED CIRCUIT SINGLE-SUPPLY OPERTIONAL AMPLIFIER * .
The UTC M2125 is a single-supply operational amplifier. FEATURES. Single-Supply Operation. Low Operating Voltage: ±2. Low.

M2125 Features

* Single-Supply Operation
* Low Operating Voltage: ±2.7V~20V
* Low Operating Current: 1.0mA (typ. )
* Slew Rate: 1.2V/μs (typ. )
* ORDERING INFORMATION Ordering Number Note: M2125G-AF5-R M2125G-AL5-R Pin Assignment: I: VIN O: Output G: GND Package SOT-25 SOT-353 Pin Assignme

📥 Download Datasheet

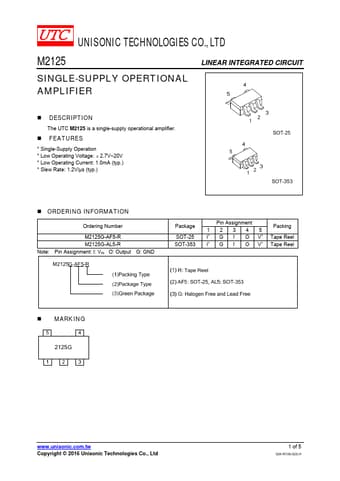

Preview of M2125 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M2125
Manufacturer
UTC
File Size
225.58 KB
Datasheet
M2125_UTC.pdf
Description
SINGLE-SUPPLY OPERTIONAL AMPLIFIER
