MPSA13 DARLINGTON TRANSISTOR

MPSA13 Description

UNISONIC TECHNOLOGIES CO., LTD MPSA13 NPN EPITAXIAL SILICON TRANSISTOR DARLINGTON TRANSISTOR * .
The UTC MPSA13 is a Darlington transistor. FEATURES. Collector-Emitter Voltage: VCES = 30V. ORDERING INFORMATION Order Number Lead.

MPSA13 Features

* Collector-Emitter Voltage: VCES = 30V
* ORDERING INFORMATION Order Number Lead Free Halogen Free Package - MPSA13G-AB3-A-R SOT-89 - MPSA13G-AB3-F-R SOT-89 MPSA13L-T92-B MPSA13G-T92-B TO-92 MPSA13L-T92-K MPSA13G-T92-K TO-92 MPSA13L-T92-A-B MPSA13G-T92-A-B TO-92 MPSA13L-

📥 Download Datasheet

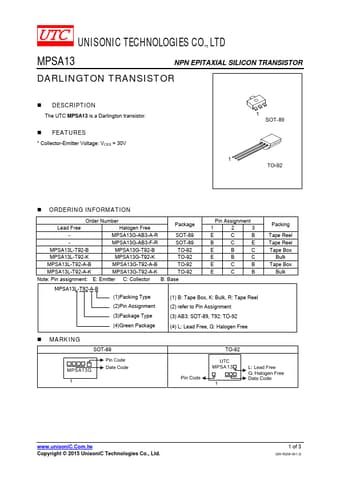

Preview of MPSA13 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPSA13
Manufacturer
UTC
File Size
168.17 KB
Datasheet
MPSA13_UTC.pdf
Description
DARLINGTON TRANSISTOR
