U74LVC1G14 Datasheet - UTC

U74LVC1G14 - SINGLE SCHMITT-TRIGGER INVERTER

The UTC U74LVC1G14 is a single Schmitt-trigger inverter, it provides the function Y = A .

The device have different input threshold levels for positivegoing (VT+) and negative-going(VT-) signals because of the Schmitt-trigger action in the input.

This device has power-down protective circuit, preven

U74LVC1G14 Features

* Operation Voltage Range: 1.65V ~ 5.5V

* Low Power Current: ICC=10μA (Max.)

* ±24mA Output Drive (VCC=3.0V)

* Power Down Protection

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC1G14L-AE5-R U74LVC1G14G-AE5-R U74LVC1G14L-AF5-R U74LVC1G14G-AF5-R U74L

U74LVC1G14_UTC.pdf

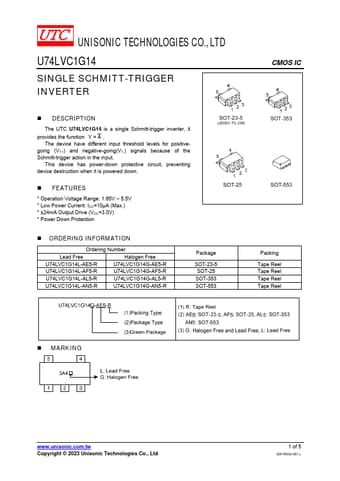

Preview of U74LVC1G14 PDF
U74LVC1G14 Datasheet Preview Page 2 U74LVC1G14 Datasheet Preview Page 3

Datasheet Details

Part number:

U74LVC1G14

Manufacturer:

UTC

File Size:

178.64 KB

Description:

Single schmitt-trigger inverter.
