U74LVC1G11 Datasheet - Unisonic Technologies

SINGLE 3-INPUT POSITIVE-AND GATE

U74LVC1G11 Features

* Supports 5-V VCC Operation

* Inputs Accept Voltages to 5.5V

* Max tpd of 4.1ns at 3.3V

* Low power consumption, ICC=10μA (Max)

* Ioff supports Partial-Power-Down Mode

* ±24mA output drive at 3.3V

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC1G

U74LVC1G11 General Description

The U74LVC1G11 performs the Boolean function Y  A * B * C or Y = A + B + C in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered dow.

U74LVC1G11 Datasheet (203.76 KB)

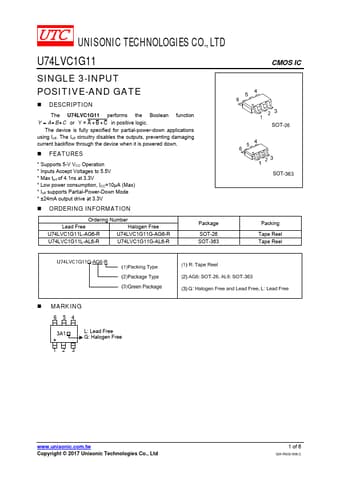

U74LVC1G11 Datasheet Preview — Preview of U74LVC1G11 PDF

Datasheet Details

Part number:

U74LVC1G11

Manufacturer:

Unisonic Technologies

File Size:

203.76 KB

Description:

Single 3-input positive-and gate.
