U74LVC1G132 Datasheet - Unisonic Technologies

U74LVC1G132 SINGLE 2-INPUT NAND GATE

The U74LVC1G132 contains one 2-input NAND gate with Schmitt-trigger inputs designed for 1.65-V to 5.5V VCC operation and performs the Boolean function Y = A‧B or Y = A + B in positive logic. Because of Schmitt action, this device has different input threshold levels for positive-going (VT+) and nega.

U74LVC1G132 Features

* Supports 5-V VCC Operation

* Inputs Accept Voltages to 5.5V

* Max tpd of 5.3ns at 3.3V

* Low power consumption, ICC=10μA (Max)

* Ioff supports Partial-Power-Down Mode

* ±24mA output drive at 3.3V

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC1

U74LVC1G132-UnisonicTechnologies.pdf

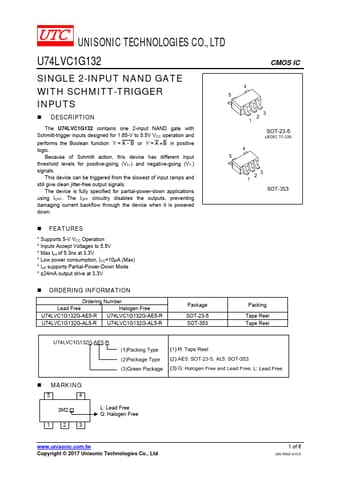

U74LVC1G132 Datasheet Preview — Preview of U74LVC1G132 PDF

Datasheet Details

Part number:

U74LVC1G132

Manufacturer:

Unisonic Technologies

File Size:

195.61 KB

Description:

Single 2-input nand gate.
