U74LVC1G18 - 1-OF-2 NON-INVERTING DEMULTIPLEXER

Unisonic Technologies

The U74LVC1G18 by Unisonic Technologies is a 1-OF-2 NON-INVERTING DEMULTIPLEXER. Below is the official datasheet preview.

📥 Download Datasheet

U74LVC1G18 1-OF-2 NON-INVERTING DEMULTIPLEXER by Unisonic Technologies - Datasheet Preview — Official preview page of the U74LVC1G18 1-OF-2 NON-INVERTING DEMULTIPLEXER datasheet (Unisonic Technologies).

Datasheet Details

Part number	U74LVC1G18
Manufacturer	Unisonic Technologies
File Size	260.13 KB
Description	1-OF-2 NON-INVERTING DEMULTIPLEXER
Datasheet	U74LVC1G18_UnisonicTechnologies.pdf

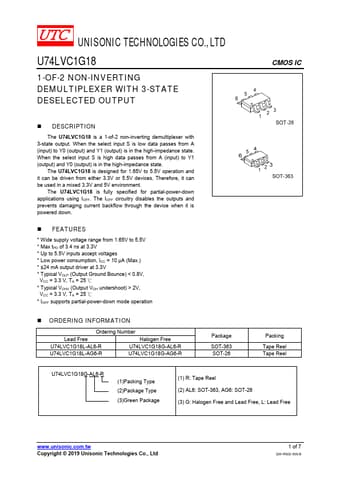

Additional preview pages of the U74LVC1G18 datasheet.

U74LVC1G18 Product details

Description

The U74LVC1G18 is a 1-of-2 non-inverting demultiplexer with 3-state output.

Features

S.
Wide supply voltage range from 1.65V to 5.5V.
Max tPD of 3.4 ns at 3.3V.
Up to 5.5V inputs accept voltages.
Low power consumption, ICC = 10 μA (Max. ).
±24 mA output driver at 3.3V.
Typical VOLP (Output Ground Bounce) < 0.8V, VCC = 3.3 V, TA = 25 ℃.
Typical VOHV (Output VOH undershoot) > 2V, VCC = 3.3 V, TA = 25 ℃.
IOFF supports partial-power-down mode operation.
