UR5033, 2 CHANNEL LOW-DROPOUT VOLTAGE REGULATOR

www.DataSheet4U.com UTC UR5033 LINEAR INTEGRATED CIRCUIT 2 CHANNEL LOW-DROPOUT VOLTAGE REGULATOR .

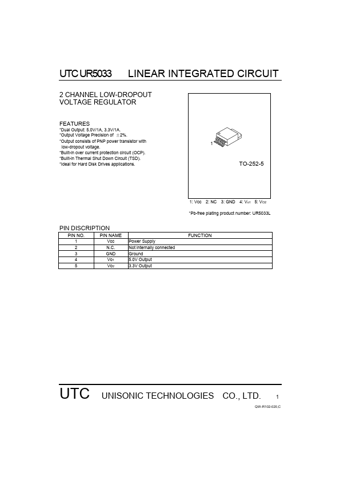

datasheet Preview Page 1 from Datasheet4u.com

UR5033_UTC.pdf

UR5033 Datasheet Preview — Preview of UR5033 PDF

Datasheet Details

Part number:

UR5033

Manufacturer:

UTC

File Size:

185.97 KB

Description:

2 CHANNEL LOW-DROPOUT VOLTAGE REGULATOR

Features

* Dual Output: 5.0V/1A, 3.3V/1A.
* Output Voltage Precision of ±2%.
* Output consists of PNP power transistor with low-dropout voltage.
* Built-in over current protection circuit (OCP).
* Built-in Thermal Shut Down Circuit (TSD).

Applications

* 1 TO-252-5 1: Vcc 2: NC 3: GND 4: Vo1 5: VO2
* Pb-free plating product number: UR5033L PIN DISCRIPTION PIN NO. 1 2 3 4 5 PIN NAME Vcc N. C. GND Vo1 Vo2 Power Supply Not internally connected Ground 5.0V Output 3.3V Output FUNCTION UTC UNISONIC TECHNOLOGIES CO. , LTD. 1 QW-R102-020,C
