UR5HC418 AT / PS/2 - Compatible Keyboard Encoder

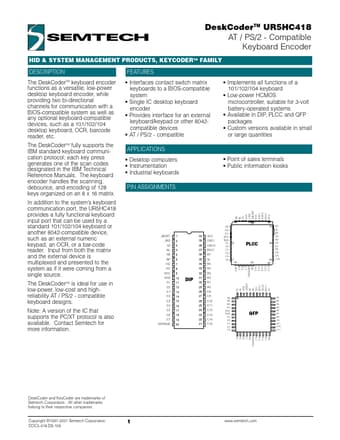

📥 Download Datasheet Datasheet Preview Page 1

Description

DeskCoderTM UR5HC418 AT / PS/2 - Compatible Keyboard Encoder HID & SYSTEM MANAGEMENT PRODUCTS, KEYCODERTM FAMILY .
The DeskCoderTM keyboard encoder functions as a versatile, low-power desktop keyboard encoder, while providing two bi-directional channels for communi.

📥 Download Datasheet

Preview of UR5HC418 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UR5HC418
Manufacturer
Semtech Corporation
File Size
146.71 KB
Datasheet
UR5HC418_SemtechCorporation.pdf
Description
AT / PS/2 - Compatible Keyboard Encoder

Features

* Interfaces contact switch matrix keyboards to a BIOS-compatible system
* Single IC desktop keyboard encoder
* Provides interface for an external keyboard/keypad or other 8042compatible devices

Applications

* Desktop computers
* Instrumentation
* Industrial keyboards PIN ASSIGNMENTS
* Point of sales terminals
* Public information kiosks
* Implements all functions of a 101/102/104 keyboard
* Low-power HCMOS microcontroller, suitable for 3-volt batt
