UR5516B

3A BUS TERMINATION REGULATOR

UTC

UR5516B Features

* Provide bi-direction current - Sourcing or sinking current up to 3A

* 1.25V/0.9V output for DDR I/II applications

* Fast transient response

* High output accuracy - ±20mv over load, VOUT offset and temperature

* Adjustable output voltage by external resistors

* Current-lim

UR5516B General Description

The UTC UR5516B is a low cost linear regulator designed to provide a desired output voltage or termination voltage for various applications by converting voltage supplies ranging from 1V to 6.0V. The desired output voltage could be programmable by two external voltage divider resistors. The UR5516B.

UR5516B Datasheet (283.16 KB)

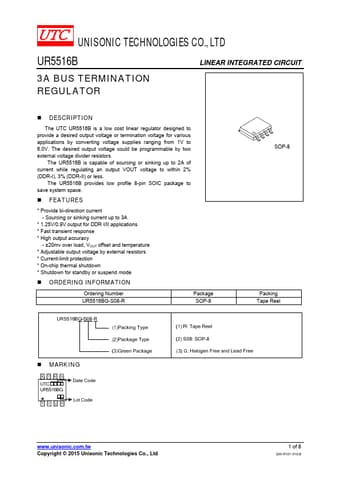

UR5516B Datasheet Preview — Preview of UR5516B PDF

Datasheet Details

Part number:

UR5516B

Manufacturer:

UTC

File Size:

283.16 KB

Description:

3a bus termination regulator.
