UR5516

3A BUS TERMINATION REGULATOR

UR5516 Features

* Provide bi-direction current - Sourcing or sinking current up to 3A

* 1.25V/0.9V output for DDR I/II applications

* Fast transient response

* High output accuracy - ±20mv over load, VOUT offset and temperature

* Adjustable output voltage by external resistors

* Current-limi

UR5516 General Description

The UTC UR5516 is designed to provide a regulated voltage with bi-directional output current for DDR-SDRAM termination. Current-limit work to limit the short-circuit current, on-chip thermal shutdown provides protection against any combination of overload that would create excessive junction tempera.

UR5516 Datasheet (296.88 KB)

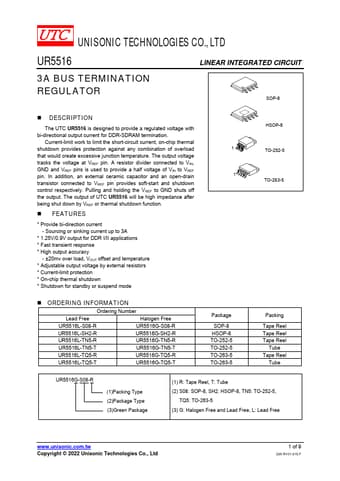

Preview of UR5516 PDF

Datasheet Details

Part number:

UR5516

Manufacturer:

UTC

File Size:

296.88 KB

Description:

3a bus termination regulator.
