UR533, 5A ADJUSTABLE/FIXED ULTRA LOW DROP-OUT LINEAR REGULATOR

www.DataSheet4U.com UNISONIC TECHNOLOGIES CO., LTD UR533 5A ADJUSTABLE/FIXED ULTRA LOW DROP-OUT LINEAR REGULATOR .
The UTC UR533 is ultra-low dropout regulators with 5A output current capability.

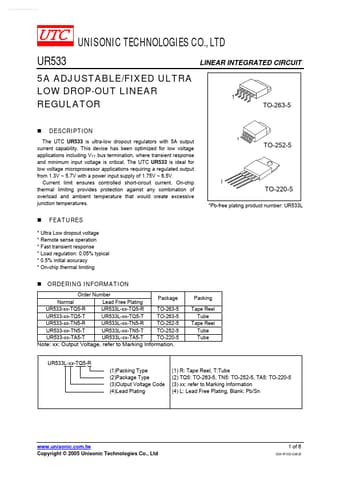

datasheet Preview Page 1 from Datasheet4u.com

UR533_UTC.pdf

UR533 Datasheet Preview — Preview of UR533 PDF

Datasheet Details

Part number:

UR533

Manufacturer:

UTC

File Size:

141.03 KB

Description:

5A ADJUSTABLE/FIXED ULTRA LOW DROP-OUT LINEAR REGULATOR

Features

* Ultra Low dropout voltage
* Remote sense operation
* Fast transient response
* Load regulation: 0.05% typical
* 0.5% initial accuracy
* On-chip thermal limiting ORDERING INFORMATION Order Number Normal Lead Free Plating UR533-xx-TQ5-R UR533L-xx-TQ5-R UR533-xx-TQ5-T UR533L-

Applications

* including VTT bus termination, where transient response and minimum input voltage is critical. The UTC UR533 is ideal for low voltage microprocessor applications requiring a regulated output from 1.3V ~ 5.7V with a power input supply of 1.75V ~ 6.5V. Current limit ensures controlled short-circuit cu
