UT60N06

60V N-CHANNEL POWER MOSFET

UTC

UT60N06 Features

* RDS(ON) ≤ 11 mΩ @ VGS=10V, ID=30A RDS(ON) ≤ 14 mΩ @ VGS=4.5V, ID=30A

* High Switching Speed

* SYMBOL Drain Power MOSFET TO-251 SOP-8 Gate Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UT60N06L-TM3-T UT60N06G-TM3-T UT60N06L-S08-R UT60N06G-S08-R N

UT60N06 General Description

1 The UTC UT60N06 is a N-channel enhancement MOSFET using UTC’s advanced technology to provide the customers with perfect RDS(ON) and high switching speed. The UTC UT60N06 is suitable for all commercial-industrial applications at power dissipation levels to approximately 50 watts, etc.
* FEATU.

UT60N06 Datasheet (395.46 KB)

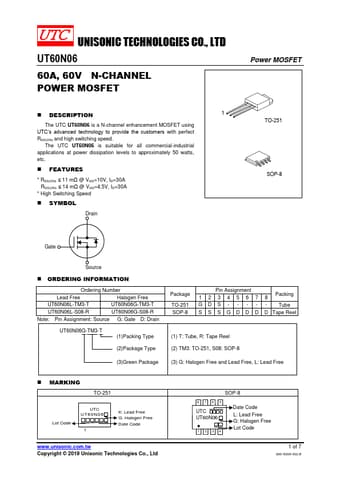

UT60N06 Datasheet Preview — Preview of UT60N06 PDF

Datasheet Details

Part number:

UT60N06

Manufacturer:

UTC

File Size:

395.46 KB

Description:

60v n-channel power mosfet.
