UTC75232

MULTIPLE RS-232 DRIVERS AND RECEIVERS

UTC75232 Features

* Single chip with easy interface between UART and Serial-Port Connector of IBMTM, PC/ATTM and Compatibles.

* Meets or Exceeds the Requirements of ANSI Standard TIA/EIA-232-F and ITU Recommendation V.28

* Designed to support data rates up to 120 kbit/s

* ESD Protection to 2kV on Bus Term

UTC75232 General Description

The UTC 75232 complies with the requirements of the TIA/EIA232-F and ITU (formerly CCITT) V.28 standards. These standards are for data interchange between a host computer and peripheral at signaling rates up to 20kbit/s. The switching speeds of the UTC 75232 are fast enough to support rates up to 12.

UTC75232 Datasheet (145.02 KB)

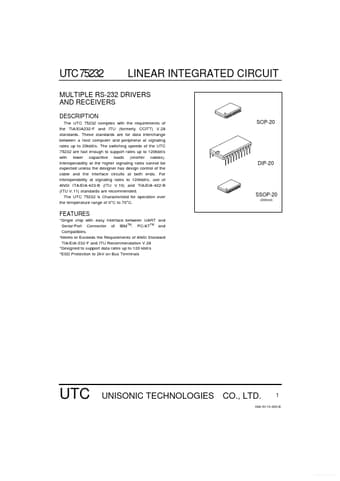

Preview of UTC75232 PDF

Datasheet Details

Part number:

UTC75232

Manufacturer:

UTC

File Size:

145.02 KB

Description:

Multiple rs-232 drivers and receivers.
