UTC7611, UTC7607 Datasheet - YOUWANG

UTC7611 - FM IF / AM Tuner System

UTC7607/7611      The UTC7607/7611 is a monolithic integrated circuit designed for the VIF stage in color and B/W television receivers.

The UTC7607 is used for Reverse AGC Type.

The UTC7611 is used for Forward AGC Type.

LINEAR INTEGRATED CIRCUIT     Three controlled IF amplifier stages Video demodulator controlled by picture carrier Black noise and white noise inverter Peak AGC DC amplifier for RF AGC output Quadrature detecto

UTC7607-YOUWANG.pdf

This datasheet PDF includes multiple part numbers: UTC7611, UTC7607. Please refer to the document for exact specifications by model.

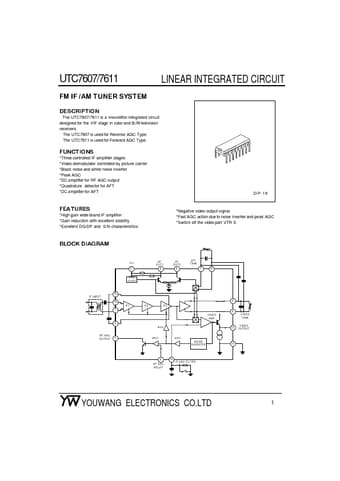

UTC7611 Datasheet Preview Page 2 UTC7611 Datasheet Preview Page 3
