UTC7112 Datasheet - YOUWANG ELECTRONICS

UTC7112 0.5W Audio Power Amplifier

UTC7112 LINEAR INTEGRATED CIRCUIT          The UTC7112 is a monolithic integrated audio power amplifier in SIP-9 package, designed for audi frequency class B amplifier.    Suitable for portable radio cassette tape recorders Medium output power Po=0.5W at Vcc=6V,RL=8 Ω,THD=10% Wide operating supply voltage range. Low quiescent current Excellent thermal stability SIP-9      Input 2 NF 3 Ripple 9 ripple filter Vcc 7 8 Bypa.

UTC7112-YOUWANGELECTRONICS.pdf

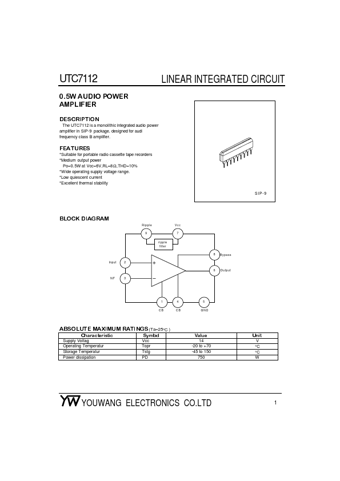

Preview of UTC7112 PDF
UTC7112 Datasheet Preview Page 2 UTC7112 Datasheet Preview Page 3

Datasheet Details

Part number:

UTC7112

Manufacturer:

YOUWANG ELECTRONICS

File Size:

53.04 KB

Description:

0.5w audio power amplifier.
