UTC78040 - VERTICAL DEFLECTOR

The UTC78040 by YOUWANG ELECTRONICS is a VERTICAL DEFLECTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the UTC78040 VERTICAL DEFLECTOR datasheet (YOUWANG ELECTRONICS).

Datasheet Details

Part number UTC78040
Manufacturer YOUWANG ELECTRONICS
File Size 111.11 KB
Description VERTICAL DEFLECTOR
Datasheet download datasheet UTC78040_YOUWANGELECTRONICS.pdf
Additional preview pages of the UTC78040 datasheet.

UTC78040 Product details

Description

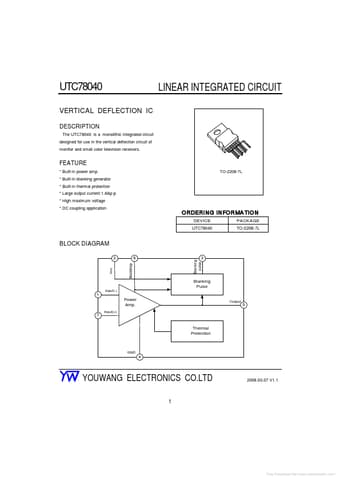

The UTC78040 is a monolithic integrated circuit designed for use in the vertical deflection circuit of monitor and small color television receivers. Built-in power amp. Built-in blanking generator Built-in thermal protection Large output current:1.8Ap-p High maximum voltage DC coupling application TO-220B-7L ORDERING INFORMATION DEVICE UTC78040 PACKAGE TO-220B-7L BLOCK DIAGRAM 2 6 3 1 Input(-) Blanking Pulse Power Amp.
