UTC7810, UTC78XX, 3 TERMINAL 1A POSITIVE Voltage Regulator

UTC78XX 3 TERMINAL 1A POSITIVE VOLTAGE REGULATORS .
LI NEAR I NTEGRATED CI RCUI T The UTC78XX series o three-terminal positive regulators are available in TO-220 package and with several fixed output.

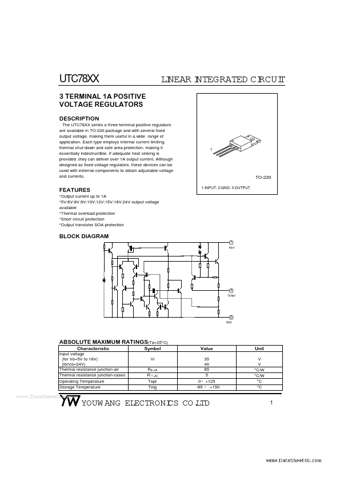

datasheet Preview Page 1 from Datasheet4u.com

UTC78XX_YOUWANG.pdf

UTC7810 Datasheet Preview — This datasheet PDF includes multiple part numbers: UTC7810, UTC78XX. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UTC7810, UTC78XX

Manufacturer:

YOUW ANG

File Size:

182.31 KB

Description:

3 TERMINAL 1A POSITIVE Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: UTC7810, UTC78XX.
Please refer to the document for exact specifications by model.

Features

* Output current up to 1A
* 5V;6V;8V;9V;10V;12V;15V;18V;24V output voltage available
* Thermal overload protection
* Short circuit protection
* Output transistor SOA protection BLOCK DIAGRAM 1 Input 3 Output 2 GND ABSOLUTE MAXIMUM RATINGS(Ta=25°C) Characteristic Input voltage (for
