UTC78D06A, UTC78DXXA 3 Terminal 0.5A Positive Voltage Regulator

Unisonic

Description

UTC 78DXXA LINEAR INTEGRATED CIRCUIT 3-TERMINAL 1A POSITIVE VOLTAGE REGULATOR .
The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit.

📥 Download Datasheet

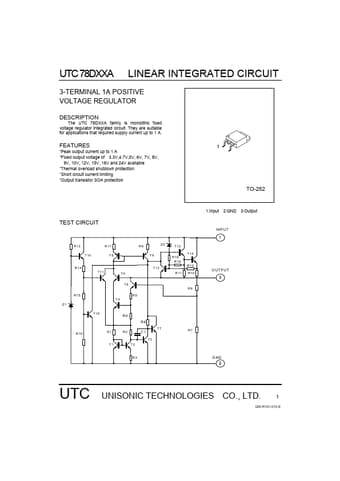

UTC78D06A Datasheet Preview — This datasheet PDF includes multiple part numbers: UTC78D06A, UTC78DXXA. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: UTC78D06A, UTC78DXXA
Manufacturer: Unisonic
File Size: 114.07 KB
Datasheet: UTC78DXXA_Unisonic.pdf
Description: 3 Terminal 0.5A Positive Voltage Regulator
Note: This datasheet PDF includes multiple part numbers: UTC78D06A, UTC78DXXA.
Please refer to the document for exact specifications by model.

Features

* Peak output current up to 1 A
* Fixed output voltage of 3.3V,4.7V,5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V and 24V available
* Thermal overload shutdown protection
* Short circuit current limiting
* Output transistor SOA protection 1 TO-252 1:Input 2:GND 3:Output TEST CIRCUIT IN
