UTC78045 - TV and CRT Display Vertical Output IC

The UTC78045 by YOUWANG ELECTRONICS is a TV and CRT Display Vertical Output IC. Below is the official datasheet preview.

📥 Download Datasheet

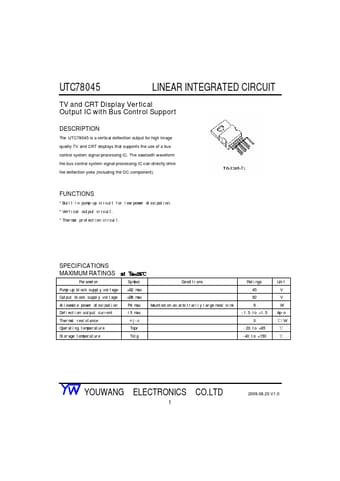

Official preview page of the UTC78045 TV and CRT Display Vertical Output IC datasheet (YOUWANG ELECTRONICS).

Datasheet Details

Part number UTC78045
Manufacturer YOUWANG ELECTRONICS
File Size 91.52 KB
Description TV and CRT Display Vertical Output IC
Datasheet download datasheet UTC78045-YOUWANGELECTRONICS.pdf
Additional preview pages of the UTC78045 datasheet.

UTC78045 Product details

Description

The UTC78045 is a vertical deflection output for high image quality TV and CRT displays that supports the use of a bus control system signal-processing IC. Built-in pump-up circuit for low power dissipation. Vertical output circuit. Thermal protection circuit.
