UTC7815

3 TERMINAL 1A POSITIVE Voltage Regulator

YOUW ANG

UTC7815 Features

* Output current up to 1A

* 5V;6V;8V;9V;10V;12V;15V;18V;24V output voltage available

* Thermal overload protection

* Short circuit protection

* Output transistor SOA protection BLOCK DIAGRAM 1 Input 3 Output 2 GND ABSOLUTE MAXIMUM RATINGS(Ta=25°C) Characteristic Input voltage (for

UTC7815 General Description

LI NEAR I NTEGRATED CI RCUI T The UTC78XX series o three-terminal positive regulators are available in TO-220 package and with several fixed output voltage, making them useful in a wide range of application. Each type employs internal current limiting, thermal shut-down and safe area protection, m.

UTC7815 Datasheet (182.31 KB)

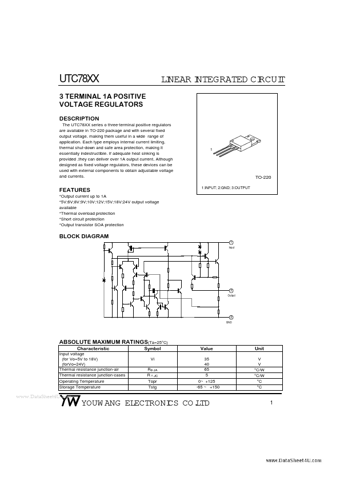

UTC7815 Datasheet Preview — Preview of UTC7815 PDF

Datasheet Details

Part number:

UTC7815

Manufacturer:

YOUW ANG

File Size:

182.31 KB

Description:

3 terminal 1a positive voltage regulator.
