UTC7812, UTC78XX 3 TERMINAL 1A POSITIVE Voltage Regulator

UTC7812 Description

UTC78XX 3 TERMINAL 1A POSITIVE VOLTAGE REGULATORS .
LI NEAR I NTEGRATED CI RCUI T The UTC78XX series o three-terminal positive regulators are available in TO-220 package and with several fixed output.

UTC7812 Features

* Output current up to 1A
* 5V;6V;8V;9V;10V;12V;15V;18V;24V output voltage available
* Thermal overload protection
* Short circuit protection
* Output transistor SOA protection BLOCK DIAGRAM 1 Input 3 Output 2 GND ABSOLUTE MAXIMUM RATINGS(Ta=25°C) Characteristic Input voltage (for

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UTC7812, UTC78XX. Please refer to the document for exact specifications by model.

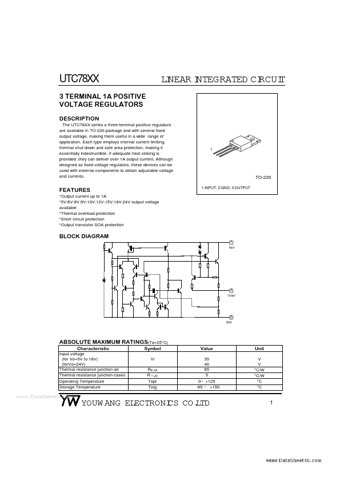

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC7812, UTC78XX
Manufacturer
YOUW ANG
File Size
182.31 KB
Datasheet
UTC78XX_YOUWANG.pdf
Description
3 TERMINAL 1A POSITIVE Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: UTC7812, UTC78XX.
Please refer to the document for exact specifications by model.
