11NM40 Datasheet, Mosfet, Unisonic Technologies

11NM40 Features

  • Mosfet
  • RDS(ON) < 0.38Ω @ VGS=10V, ID=5.7A
  • High switching speed
  • Low effective output capacitance (Typ.=95pF)
  • Low gate charge (Typ.=40nC)
  • SYMBOL

PDF File Details

Part number:

11NM40

Manufacturer:

Unisonic Technologies

File Size:

225.77kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The UTC 11NM40 is an Super Junction MOSFET Structure . It uses UTC advanced planar stripe, DMOS technology to provide customers perfe

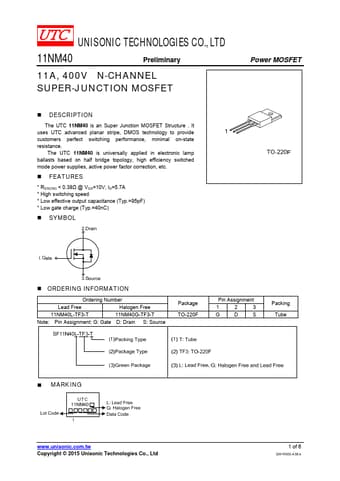

Datasheet Preview: 11NM40 📥 Download PDF (225.77kb)
Page 2 of 11NM40 Page 3 of 11NM40
