11NM60 Datasheet, Mosfet, Unisonic Technologies

11NM60 Features

  • Mosfet
  • RDS(ON) ≤ 0.42 Ω @ VGS=10V, ID=5.5A
  • By using Super Junction Structure
  • Fast Switching
  • With 100% Avalanche Tested
  • SYMBOL Power MOSFET w

PDF File Details

Part number:

11NM60

Manufacturer:

Unisonic Technologies

File Size:

679.52kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The UTC 11NM60 is an Super Junction MOSFET Structure. It uses UTC advanced planar stripe, DMOS technology to provide customers perfec

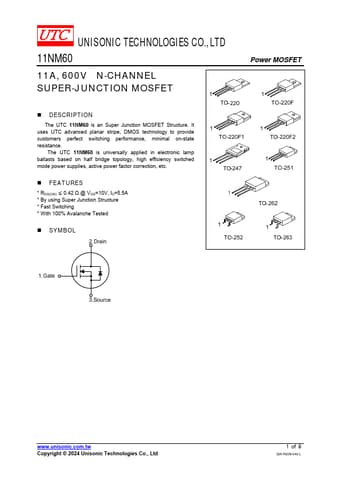

Datasheet Preview: 11NM60 📥 Download PDF (679.52kb)
Page 2 of 11NM60 Page 3 of 11NM60
