11NM65N

STD11NM65N

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STD11NM65N MOSFET N CH 650V 11A DPAK DigiKey 2500 2500 units
$1.54

11NM65N Datasheet (627.38 KB)

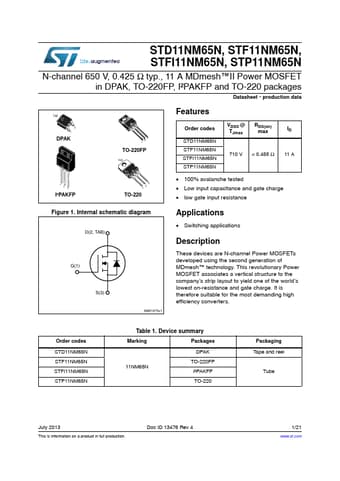

Preview of 11NM65N PDF

Datasheet Details

Part number:

11NM65N

Manufacturer:

STMicroelectronics ↗

File Size:

627.38 KB

Description:

Std11nm65n.
STD11NM65N, STF11NM65N, STFI11NM65N, STP11NM65N N-channel 650 V, 0.425 Ω typ., 11 A MDmesh™II Power MOSFET in DPAK, TO-220FP, I²PAKFP and TO-220 packa.

11NM65N Features

* Order codes VDSS @ TJmax RDS(on) max ID STD11NM65N STF11NM65N STFI11NM65N STP11NM65N 710 V < 0.455 Ω 11 A

* 100% avalanche tested

* Low input capacitance and gate charge

* low gate input resistance Figure 1. Internal schematic diagram ' Ć7$% Applications

11NM65N General Description


*  6  $0Y These devices are N-channel Power MOSFETs developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is ther.
