11NM60-U2 - N-CHANNEL POWER MOSFET

11NM60-U2 Description

UNISONIC TECHNOLOGIES CO., LTD 11NM60-U2 11A, 600V N-CHANNEL SUPER-JUNCTION MOSFET * .
The UTC 11NM60-U2 is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, l.

11NM60-U2 Features

* RDS(ON) < 0.5Ω @ VGS=10V, ID=5.5A
* By using Super Junction Structure
* Fast Switching
* With 100% Avalanche Tested
* SYMBOL Power MOSFET
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 11NM60L-TA3-T 11NM60G-TA3-T 11NM60L-TF3-T 11NM60G-TF3-T 11NM60L-

📥 Download Datasheet

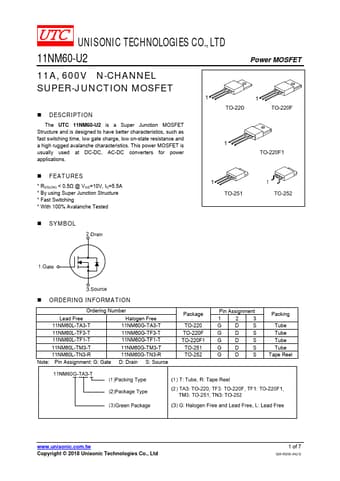

Preview of 11NM60-U2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
11NM60-U2
Manufacturer
Unisonic Technologies
File Size
315.46 KB
Datasheet
11NM60-U2-UnisonicTechnologies.pdf
Description
N-CHANNEL POWER MOSFET
