U74LVC2G132 - DUAL 2-INPUT NAND GATE

Unisonic Technologies

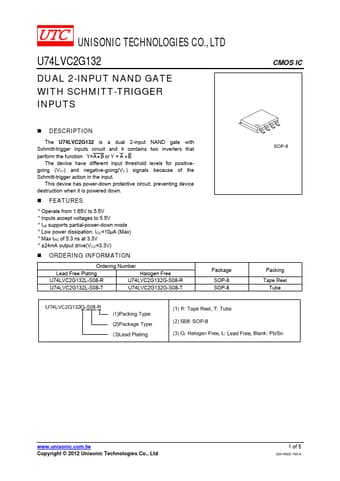

U74LVC2G132 Datasheet Preview — Preview of U74LVC2G132 PDF

Datasheet Details

Part number	U74LVC2G132
Manufacturer	Unisonic Technologies
File Size	234.49 KB
Description	DUAL 2-INPUT NAND GATE
Datasheet	U74LVC2G132_UnisonicTechnologies.pdf

U74LVC2G132 Product details

Description

SOP-8 CMOS IC The U74LVC2G132 is a dual 2-input NAND gate with Schmitt-trigger inputs circuit and it contains two inverters that perform the function Y=A B or Y = A + B The device have different input threshold levels for positivegoing (VT+) and negative-going(VT-) signals because of the Schmitt-trigger action in the input.

Features

ES.
Operate from 1.65V to 5.5V.
Inputs accept voltages to 5.5V.
Ioff supports partial-power-down mode.
Low power dissipation: ICC=10μA (Max).
Max tPD of 5.3 ns at 3.3V.
±24mA output drive(VCC=3.3V) www. DataSheet. net/.
