U74LVC2G17 - DUAL SCHMITT-TRIGGER BUFFER

Unisonic Technologies

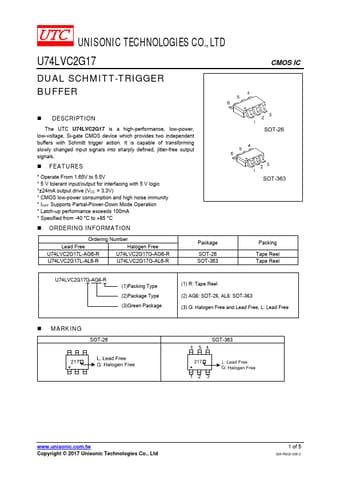

U74LVC2G17 Datasheet Preview — Preview of U74LVC2G17 PDF

Datasheet Details

Part number	U74LVC2G17
Manufacturer	Unisonic Technologies
File Size	154.71 KB
Description	DUAL SCHMITT-TRIGGER BUFFER
Datasheet	U74LVC2G17_UnisonicTechnologies.pdf

U74LVC2G17 Product details

Description

The UTC U74LVC2G17 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action.

Features

S.
Operate From 1.65V to 5.5V.
5 V tolerant input/output for interfacing with 5 V logic.
±24mA output drive (VCC = 3.3V).
CMOS low-power consumption and high noise immunity.
IOFF Supports Partial-Power-Down Mode Operation.
Latch-up performance exceeds 100mA.
Specified from -40 °C to +85 °C.
