U74LVC2G19

1-OF-2 DECODER/DEMULTIPLEXER

U74LVC2G19 Features

* Operate from 1.65V to 5.5V

* Inputs accept voltages to 5.5V

* Low power dissipation, ICC=10μA (Max)

* ±24mA output drive(VCC=3V)

* ORDERING INFORMATION Ordering Number Lead Free U74LVC1G19L-AL6-R www.DataSheet.net/ Halogen Free U74LVC1G19G-AL6-R Package SOT-363 Packin

U74LVC2G19 General Description

CMOS IC The U74LVC1G19 is a 1-of-2 decoder / demultiplexer with a common output enable. This device buffers the data on input A and passes it to the outputs 1Y and 2Y when the enable input signal is LOW. This device is fully specified for partial power-down applications using Ioff. The Ioff circui.

U74LVC2G19 Datasheet (215.20 KB)

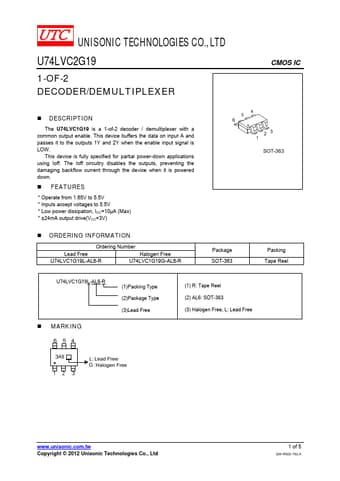

Preview of U74LVC2G19 PDF

Datasheet Details

Part number:

U74LVC2G19

Manufacturer:

Unisonic Technologies

File Size:

215.20 KB

Description:

1-of-2 decoder/demultiplexer.
