U74LVC573 - OCTAL TRANSPARENT D-TYPE LATCHES

Unisonic Technologies

📥 Download Datasheet

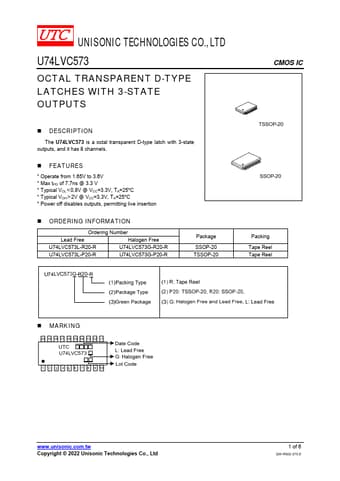

U74LVC573 Datasheet Preview — Preview of U74LVC573 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC573
Manufacturer	Unisonic Technologies
File Size	318.20 KB
Description	OCTAL TRANSPARENT D-TYPE LATCHES
Datasheet	U74LVC573_UnisonicTechnologies.pdf

U74LVC573 Product details

Description

The U74LVC573 is a octal transparent D-type latch with 3-state outputs, and it has 8 channels.

Features

S.
Operate from 1.65V to 3.6V.
Max tPD of 7.7ns @ 3.3 V.
Typical VOL2V @ VCC=3.3V, TA=25°C.
Power off disables outputs, permitting live insertion.
