U74LVC04A Datasheet, Inverters, Unisonic Technologies

U74LVC04A Features

  • Inverters
  • Operation Voltage Range: 1.65~3.6V
  • Low Power Dissipation
  • Input accept voltage to 5.5V CMOS IC DIP-14 SOP-14 TSSOP-14
  • ORDERING INFORMATION Orde

PDF File Details

Part number:

U74LVC04A

Manufacturer:

Unisonic Technologies

File Size:

176.20kb

Download:

📄 Datasheet

Description:

Hex inverters. The UTC U74LVC04A consists of six independent inverters, it provides the function Y = A . Inputs can be driven from either 3.3V or 5V

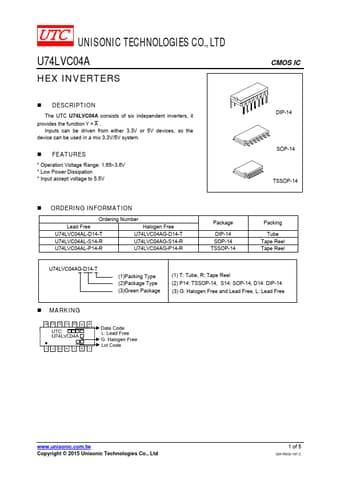

Datasheet Preview: U74LVC04A 📥 Download PDF (176.20kb)
Page 2 of U74LVC04A Page 3 of U74LVC04A
