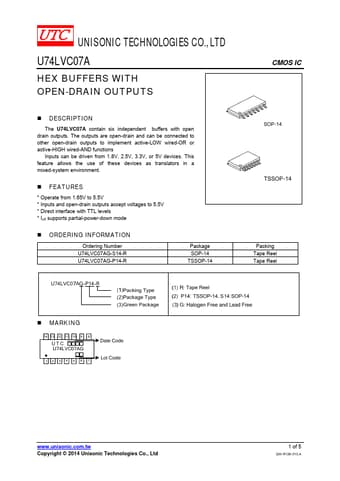

U74LVC07A Datasheet, Buffers, Unisonic Technologies

U74LVC07A Features

• Buffers
• Operate from 1.65V to 5.5V
• Inputs and open-drain outputs accept voltages to 5.5V
• Direct interface with TTL levels
• Ioff supports partial-power-dow

PDF File Details

Part number:

U74LVC07A

Manufacturer:

Unisonic Technologies

File Size:

199.27kb

Download:

📄 Datasheet

Description:

Hex buffers. The U74LVC07A contain six independent buffers with open drain outputs. The outputs are open-drain and can be connected to other open-
