U74LVC08A - QUAD 2-INPUT AND GATE

Unisonic Technologies

📥 Download Datasheet

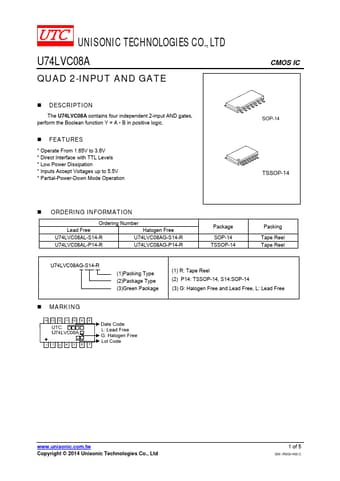

U74LVC08A Datasheet Preview — Preview of U74LVC08A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC08A
Manufacturer	Unisonic Technologies
File Size	197.87 KB
Description	QUAD 2-INPUT AND GATE
Datasheet	U74LVC08A_UnisonicTechnologies.pdf

U74LVC08A Product details

Description

The U74LVC08A contains four independent 2-input AND gates, perform the Boolean function Y = A B in positive logic.

Features

S.
Operate From 1.65V to 3.6V.
Direct Interface with TTL Levels.
Low Power Dissipation.
Inputs Accept Voltages up to 5.5V.
Partial-Power-Down Mode Operation CMOS IC.
