UTC801

3/4 STRINGS Xmas LIGHT CONTROLLER

UTC801 Features

* Adjustable flash rate.

* Programmable 2/3/4 strings of bulbs.

* UTC 801 sequential mode for about 57 sec. 4 light string flash for about 3 sec. according to normal fosc. then back to sequential again.

* UTC 802 sequential mode only. APPLICATION

* Xmas light controller, any AC contro

UTC801 Datasheet (26.51 KB)

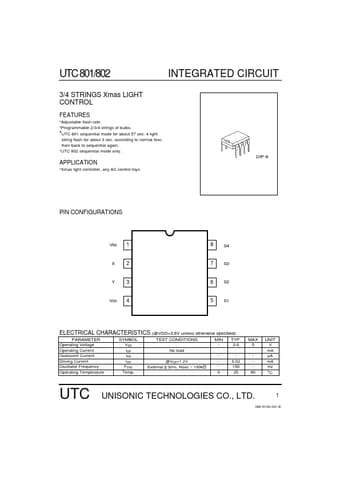

Preview of UTC801 PDF

Datasheet Details

Part number:

UTC801

Manufacturer:

Unisonic Technologies

File Size:

26.51 KB

Description:

3/4 strings xmas light controller.
