UTC8050S NPN Epitaxial Silicon Transistor

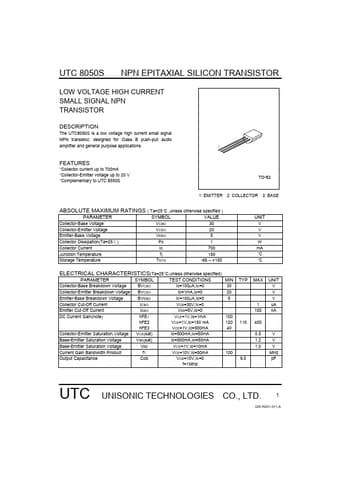

📥 Download Datasheet  Datasheet Preview Page 1

Description

UTC 8050S NPN EPITAXIAL SILICON TRANSISTOR LOW VOLTAGE HIGH CURRENT SMALL SIGNAL NPN TRANSISTOR .
The UTC8050S is a low voltage high current small signal NPN transistor, designed for Class B push-pull audio amplifier and general purpose application.

📥 Download Datasheet

Preview of UTC8050S PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
UTC8050S
Manufacturer
Unisonic Technologies
File Size
76.72 KB
Datasheet
UTC8050S_UnisonicTechnologies.pdf
Description
NPN Epitaxial Silicon Transistor

Features

* Collector current up to 700mA
* Collector-Emitter voltage up to 20 V
* Complementary to UTC 8550S 1: EMITTER 2: COLLECTOR TO-92 3: BASE ABSOLUTE MAXIMUM RATINGS ( Ta=25°C ,unless otherwise specified ) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collec
