UTC8121

POWER RESET

UTC8121 Features

* High precision voltage detection. (VSS3% max.)

* Low current consumption (ICCH=5µA max. ICCL=5µA max.)

* Low operating threshold voltage (0.65V typ.)

* Hysteresis voltage is provided as a detect voltage (50mV typ.)

* Large output current at the time ON (15mA typ.)

* The detect v

UTC8121 General Description

The function of UTC 81XX is to accurately reset system after detecting the supply voltage at the time of switching power on and instantaneous power off in various CPU and other logic systems. Further, this IC, with its super low consumption current and high precision voltage detection capacity, UTC .

UTC8121 Datasheet (239.73 KB)

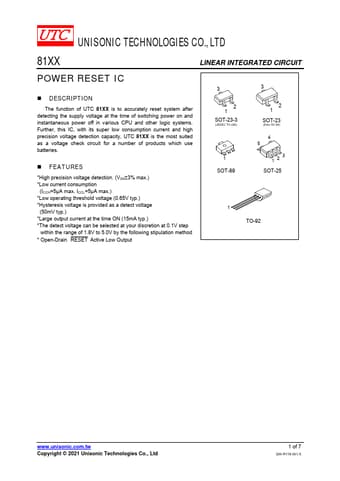

Preview of UTC8121 PDF

Datasheet Details

Part number:

UTC8121

Manufacturer:

UTC

File Size:

239.73 KB

Description:

Power reset.
