UTC8207 - Low Frequency Power Amplifier

Product Overview

📥 Download Datasheet

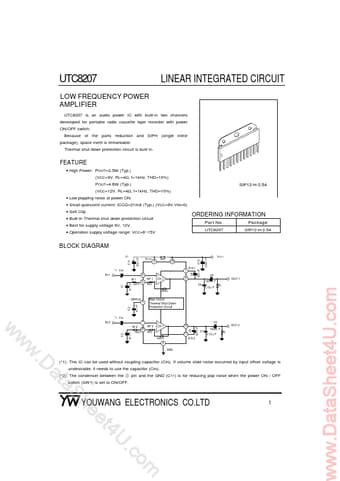

Datasheet preview – UTC8207

Datasheet Details

Part number UTC8207
Manufacturer Hangzhou Silan Microelectronics
File Size 132.50 KB
Description Low Frequency Power Amplifier
Datasheet download datasheet UTC8207 Datasheet
Additional preview pages of the UTC8207 datasheet.

Product details

Description

YOUWANG ELECTRONICS CO.LTD 2 UTC8207 1. Adjustment of Voltage Gain LINEAR INTEGRATED CIRCUIT The voltage gain GV is obtained as follows by R1, R2 and Rf in fig.1. Rf + R1+ R2 GV = 20log Rf + R1 When Rf=0, GV=56.5dB (Typ.) When Rf=120Ω, GV=45dB (Typ.) By increasing Rf, reduction of GV is possible.However, since the feedback increase is liable to produce oscillation, it is recommended to use this at 40dB or over.Fig.1 INPUT 6/7 Rf CNF 5/8 R1 45 + AMP R2 30K 2/10 OUTPUT 2. Thermal Shut-down
