UTC820 1.2W Audio Power Amplifier

UTC820 Description

UTC820 .
LI NEAR I NTEGRATED CI RCUI T 1.

UTC820 Features

* Wide operating supply voltage:Vcc=3~14V
* Low quiescent supply current(Icc=4mA,typical)
* Medium output power Po=1.2W at Vcc=9V,RL=8ohm ,Thd=10%
* Good ripple rejection
* Minimum number of external parts required. DIP-8 BLOCK DIAGRAM Ripple Bootstrap Vcc Output 8 7 6 5 CB NF

📥 Download Datasheet

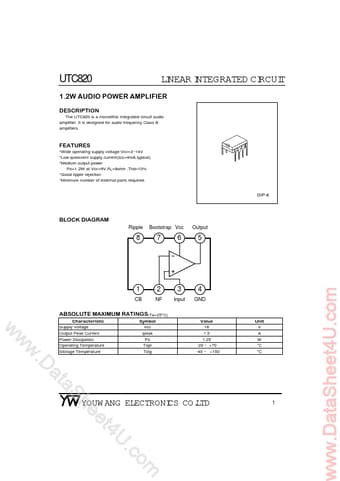

Preview of UTC820 PDF
