UTC3308

Single Supply Dual High Current Operational Amplifier Operating

UTC3308 Features

* Single Supply

* Operating Voltage (+3V~+15V) (±1.5V~±7.5V)

* High Output Current (150mA)

* High Frequency Noise Rejection

* Internal Enhanced Frequency Compensation TSSOP-8 PIN CONFIGURATIONS OUT 1 1 8 V+ OUT 2 IN 1(-) 2 A B 7 IN 1(+) 3 4 6 5 IN 2(-) GND IN 2(+) UTC

UTC3308 Datasheet (60.74 KB)

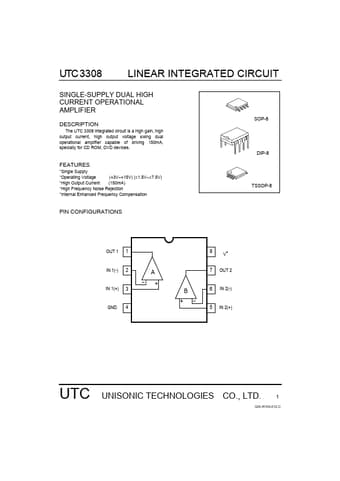

Preview of UTC3308 PDF

Datasheet Details

Part number:

UTC3308

Manufacturer:

Unisonic

File Size:

60.74 KB

Description:

Single supply dual high current operational amplifier operating.
