CHA3396-QDG

27-33.5GHz Medium Power Amplifier

United Monolithic Semiconductors

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	United Monolithic Semiconductors	CHA3396-QDG/21	RF & MW POWER AMPLIFIER	Richardson RFPD	0	0	$0

Download Datasheet (644.83 KB)

CHA3396-QDG Datasheet Preview — Preview of CHA3396-QDG Datasheet

Datasheet Details

Part number:

CHA3396-QDG

Manufacturer:

United Monolithic Semiconductors

File Size:

644.83 KB

Description:

27-33.5ghz medium power amplifier.

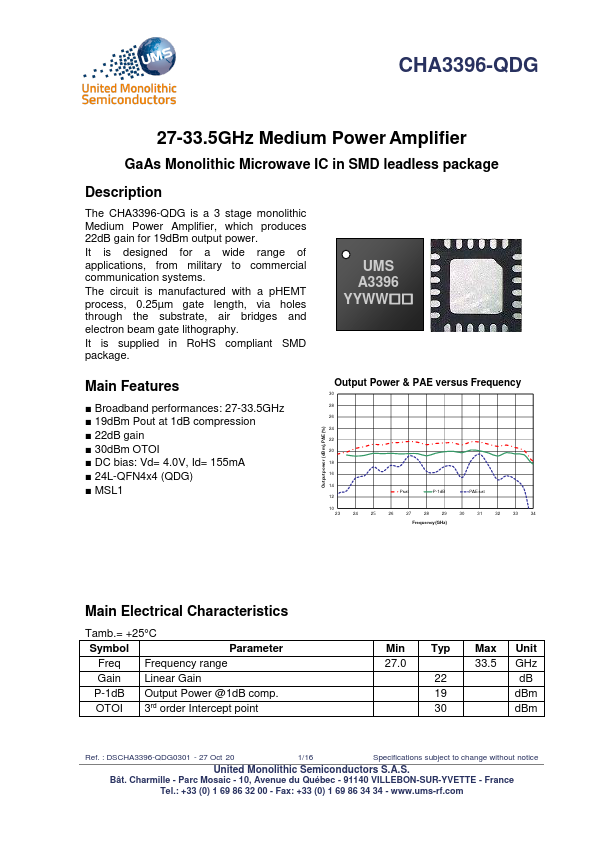

CHA3396-QDG 27-33.5GHz Medium Power Amplifier GaAs Monolithic Microwave IC in SMD leadless package .
The CHA3396-QDG is a 3 stage monolithic Medium Power Amplifier, which produces 22dB gain for 19dBm o.

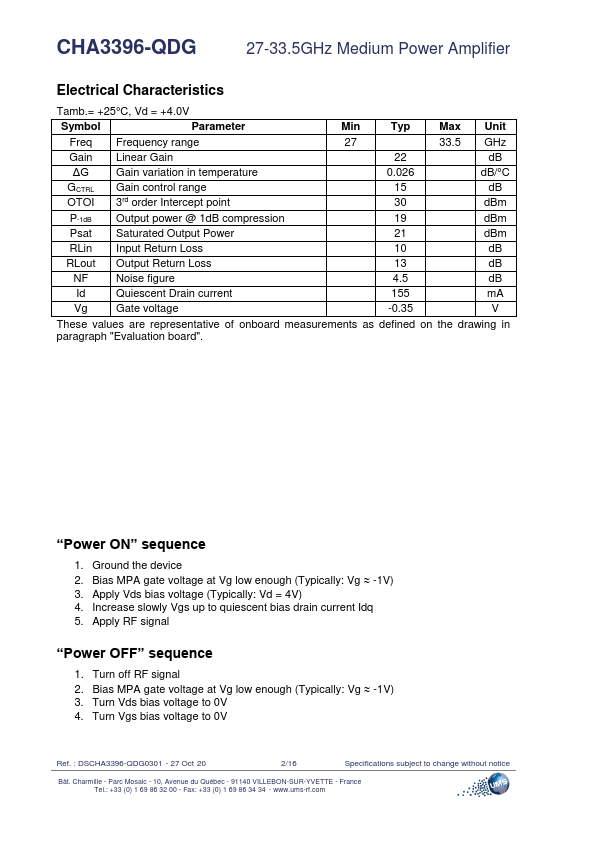

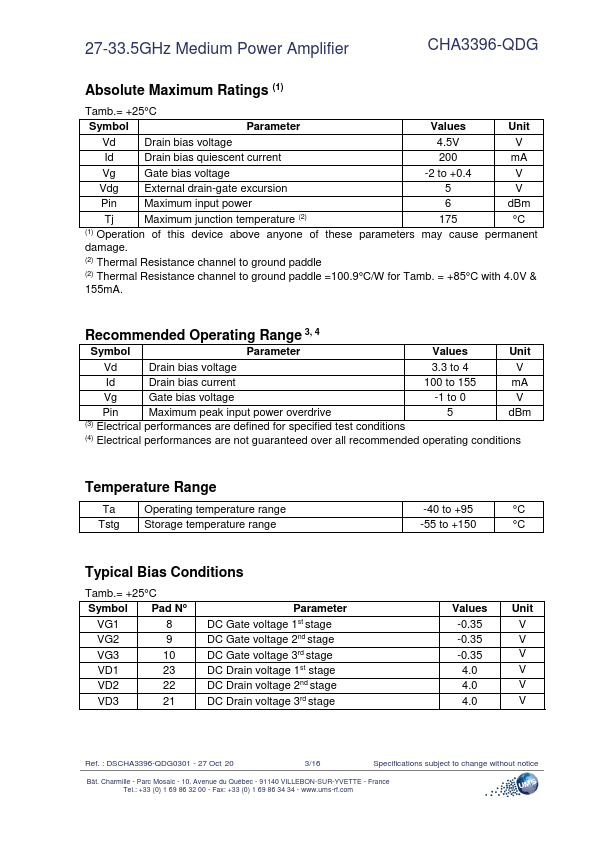

✔ CHA3396-QDG Features

Broadband performances: 27-33.5GHz
19dBm Pout at 1dB compression
22dB gain
30dBm OTOI
DC bias: Vd= 4.0V, Id= 155mA
24L-QFN4x4 (QDG)
MSL1 Output power (dBm)

✔ CHA3396-QDG Application

from military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm
