CHA02016 - High Frequency 70-GHz Thin Film Chip Resistor

Datasheet Summary

Features

  • Operating frequency 70 GHz.
  • AEC-Q200 qualified.
  • Thin film microwave resistors.
  • Ohmic range: 10 Ω to 500 Ω.
  • Design kits available.
  • Modelithics® library available.
  • Small internal reactance (LC down to 1 x 10-24).
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Did You Know? Infographics Why It Matters Those miniaturized components are designed in such a way that their internal re.

📥 Download Datasheet

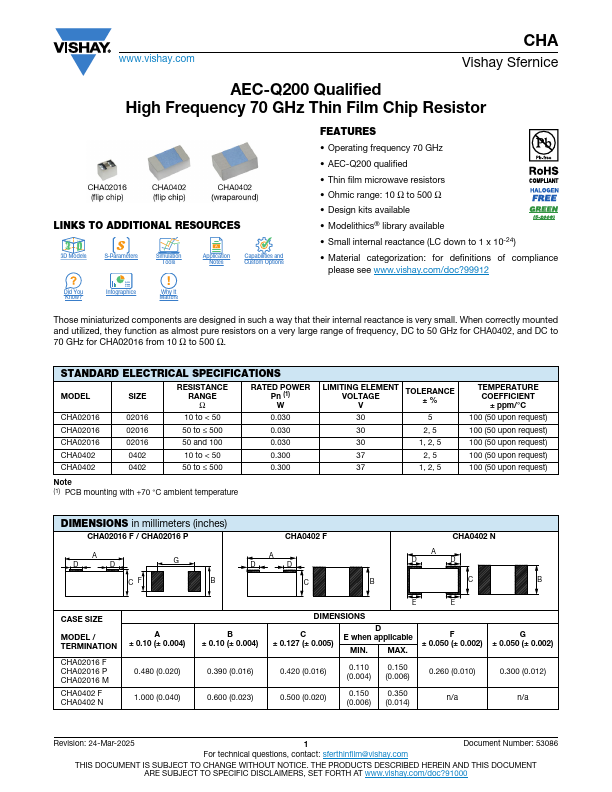

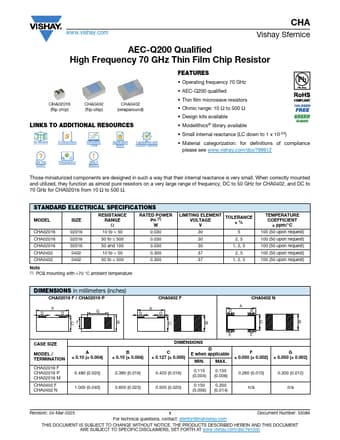

Datasheet preview – CHA02016

Datasheet Details

Part number CHA02016
Manufacturer Vishay
File Size 164.50 KB
Description High Frequency 70-GHz Thin Film Chip Resistor
Datasheet download datasheet CHA02016 Datasheet

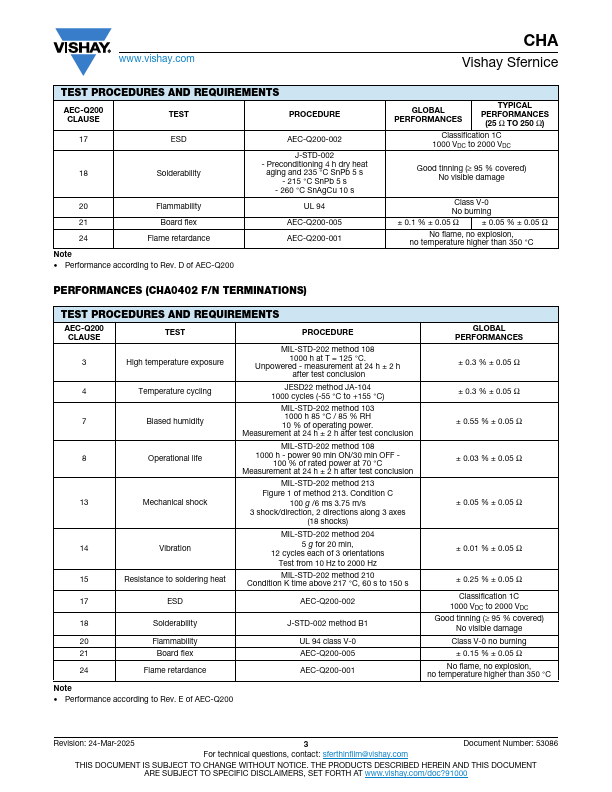

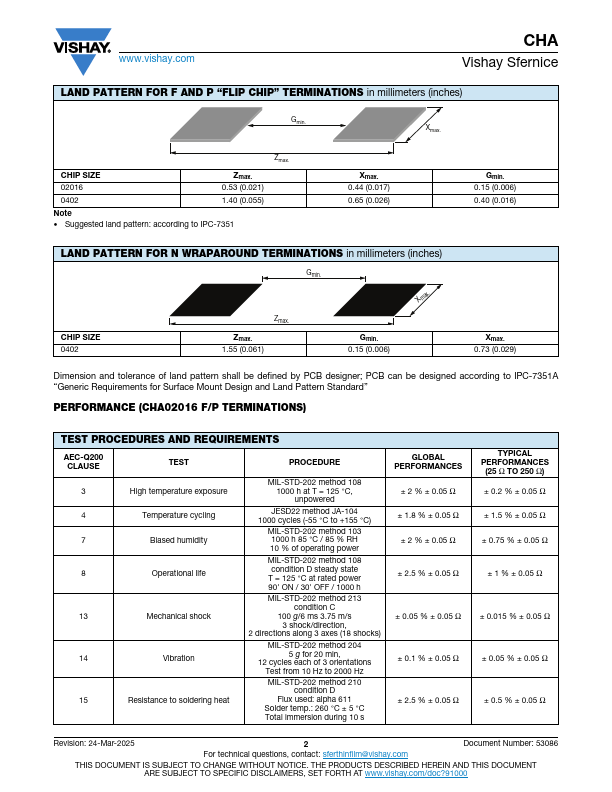

Additional preview pages of the CHA02016 datasheet.
