CHA0402 - High Frequency 70-GHz Thin Film Chip Resistor

This page provides the datasheet information for the CHA0402, a member of the CHA02016 High Frequency 70-GHz Thin Film Chip Resistor family.

Datasheet Summary

Features

  • Operating frequency 70 GHz.
  • AEC-Q200 qualified.
  • Thin film microwave resistors.
  • Ohmic range: 10 Ω to 500 Ω.
  • Design kits available.
  • Modelithics® library available.
  • Small internal reactance (LC down to 1 x 10-24).
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 Did You Know? Infographics Why It Matters Those miniaturized components are designed in such a way that their internal re.

📥 Download Datasheet

Datasheet preview – CHA0402

Datasheet Details

Part number CHA0402
Manufacturer Vishay
File Size 164.50 KB
Description High Frequency 70-GHz Thin Film Chip Resistor
Datasheet download datasheet CHA0402 Datasheet
Additional preview pages of the CHA0402 datasheet.

📁 Similar Datasheet

  • CHA-20NF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA1008-99F - 80-105GHz Balanced Low Noise Amplifier (United Monolithic Semiconductors)
  • CHA1010-99F - 7-11GHz Low Noise Amplifier (United Monolithic Semiconductors)
  • CHA1077 - W-Band Low Noise Amplifier (United Monolithic Semiconductors)
  • CHA1077A - W-band Low Noise Amplifier (United Monolithic Semiconductors)
Other Datasheets by Vishay
  • CHA02016 - High Frequency 70-GHz Thin Film Chip Resistor

Full PDF Text Transcription

Click to expand full text

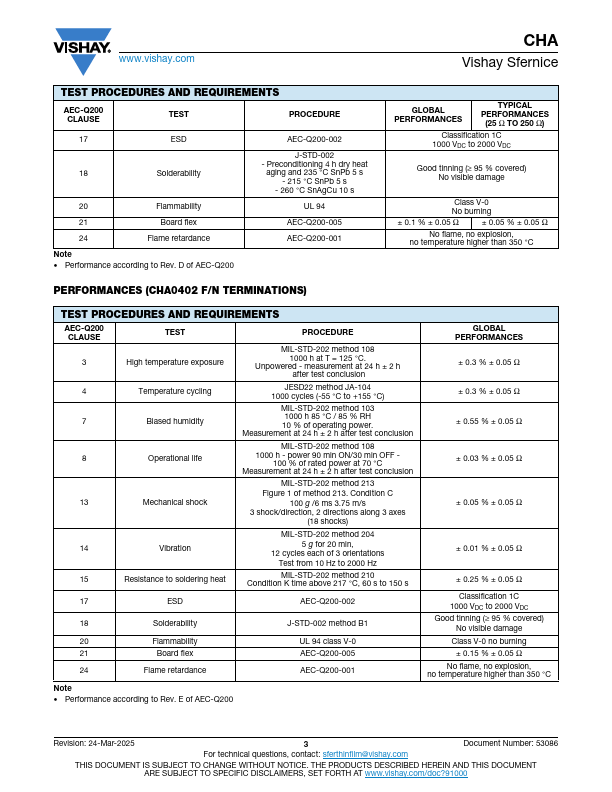

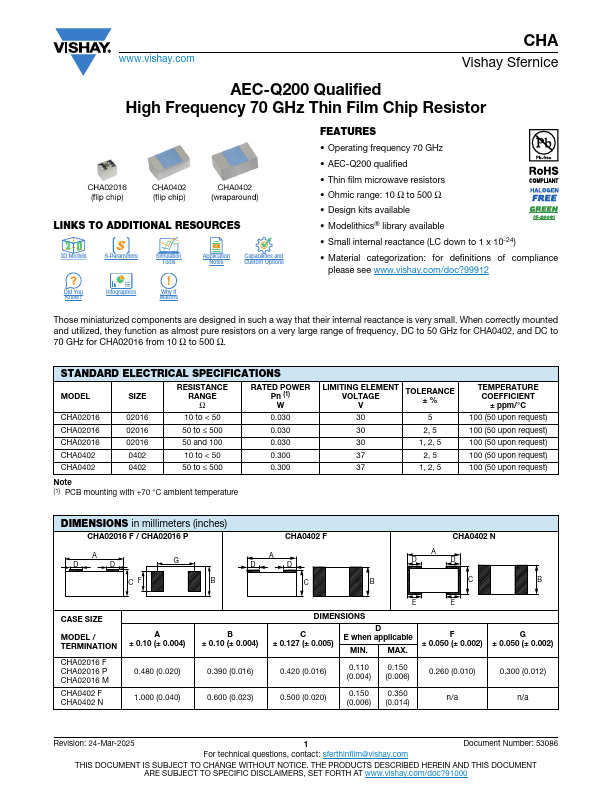

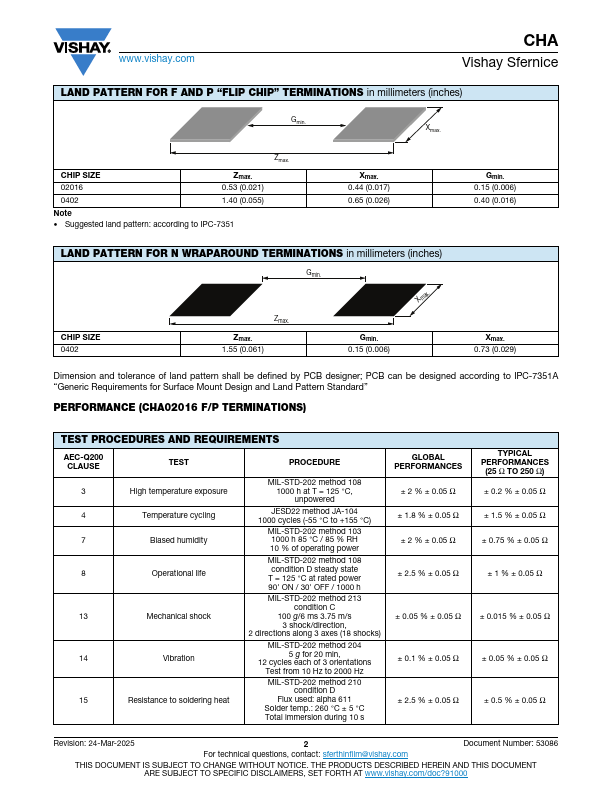

www.vishay.com CHA Vishay Sfernice AEC-Q200 Qualified High Frequency 70 GHz Thin Film Chip Resistor LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models S-Parameters Simulation Tools Application Notes Capabilities and Custom Options FEATURES • Operating frequency 70 GHz • AEC-Q200 qualified • Thin film microwave resistors • Ohmic range: 10 Ω to 500 Ω • Design kits available • Modelithics® library available • Small internal reactance (LC down to 1 x 10-24) • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Did You Know? Infographics Why It Matters Those miniaturized components are designed in such a way that their internal reactance is very small.
