CHA-20SF Datasheet - Component General

CHA-20SF (CHA-20xx) Coaxial Attenuators

__ Coaxial Attenuators _ MECHANICAL SPECIFICATIONS Connector: Housing: Insulator: www.DataSheet4U.com Brass, Nickel Plated. Aluminum, Nickel Plated per QQ-N-290. PTFE, Virgin grade. 50 Ω. high power coaxial attenuators product selection chart Connectors Width Height SMA Male SMA Female SMA Male & Female N Male N Female N Male & Female 1.770" 1.500" 1.635" 2.640" 2.520" 2.580" 1.000" 1.000" 1.000" 1.000" 1.000" 1.000" Impedance: P/N CHA-20 SM CHA-20 SF CHA-20 SMF CHA-20 NM CHA-20 NF CHA-20 NMF.

CHA-20SF Datasheet (516.50 KB)

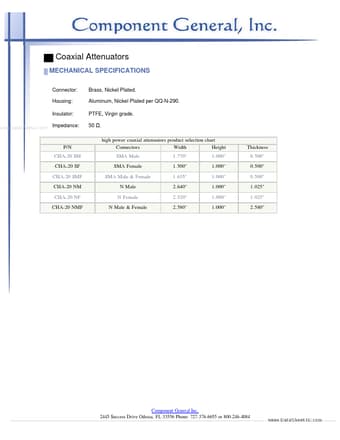

Preview of CHA-20SF PDF
CHA-20SF Datasheet Preview Page 2 CHA-20SF Datasheet Preview Page 3

Datasheet Details

Part number:

CHA-20SF

Manufacturer:

Component General

File Size:

516.50 KB

Description:

(cha-20xx) coaxial attenuators.
