CHA2050-QDG - Low Noise Amplifier

Datasheet Summary

Description

The CHA2050-QDG is a three-stage GaAs Low Noise Amplifier operating in the frequency band 17-21.5GHz.

This LNA typically presents 1.3dB Noise Figure associated to a typical small signal gain of 26dB.

It provides 6dBm output power at 1dB gain compression.

Features

  • Broadband performances: 17-21.5GHz.
  • Gain: 26dB.
  • NF: 1.3dB.
  • OIP3: 17dBm.
  • DC bias: Vd=2Volt@Id=30mA.
  • MSL1 Main Electrical Characteristics Tcase = +25°C Symbol Parameter Freq Frequency range Gain Linear Gain NF Noise Figure P1dB Output Power @1dB comp. Min Typ Max Unit 17 21.5 GHz 26 dB 1.3 dB 6 dBm Ref. : DSCHA20504351 - 16 Dec 24 1/18 Specifications subject to change without notice United Monolithic Semiconductors S. A. S. Bat. Charmille - Parc M.

📥 Download Datasheet

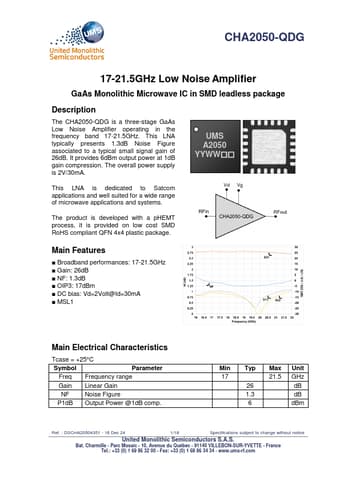

Datasheet preview – CHA2050-QDG

Datasheet Details

Part number CHA2050-QDG
Manufacturer United Monolithic Semiconductors
File Size 2.01 MB
Description Low Noise Amplifier
Datasheet download datasheet CHA2050-QDG Datasheet
Additional preview pages of the CHA2050-QDG datasheet.

📁 Similar Datasheet

  • CHA-20NF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA02016 - High Frequency 70-GHz Thin Film Chip Resistor (Vishay)
  • CHA0402 - High Frequency 70-GHz Thin Film Chip Resistor (Vishay)
  • CHA3080-98F - 71 ~ 76 GHz Medium Power Amplifier (UMS)
  • CHA441 - Hall-effect sensor (Cosemitech)
Other Datasheets by United Monolithic Semiconductors

Full PDF Text Transcription

Click to expand full text
CHA2050-QDG 17-21.5GHz Low Noise Amplifier GaAs Monolithic Microwave IC in SMD leadless package Description The CHA2050-QDG is a three-stage GaAs Low Noise Amplifier operating in the frequency band 17-21.5GHz. This LNA typically presents 1.3dB Noise Figure associated to a typical small signal gain of 26dB. It provides 6dBm output power at 1dB gain compression. The overall power supply is 2V/30mA. UMS A2050 YYWW This LNA is dedicated to Satcom applications and well suited for a wide range of microwave applications and systems. The product is developed with a pHEMT process, it is provided on low cost SMD RoHS compliant QFN 4x4 plastic package. Main Features ■ Broadband performances: 17-21.5GHz ■ Gain: 26dB ■ NF: 1.
