CHA2069-99F - 18-31GHz Low Noise Amplifier

CHA2069-99F Description

CHA2069-99F 18-31GHz Low Noise Amplifier GaAs Monolithic Microwave IC .
The circuit is a three-stage self biased wide band monolithic low noise amplifier.

CHA2069-99F Features

* Broad band performance 16-31GHz
* 2.5dB noise figure
* 22dB gain,  1dB gain flatness
* Low DC power consumption, 55mA
* 20dBm 3rd order intercept point
* Chip size : 2,170 x 1,270x 0.1mm Gain & NF ( dB ) 24 22 20 18 16 14 12 10 8 6 4 2 0 14 16 18 20 22 24 26 28 30 32 34

📥 Download Datasheet

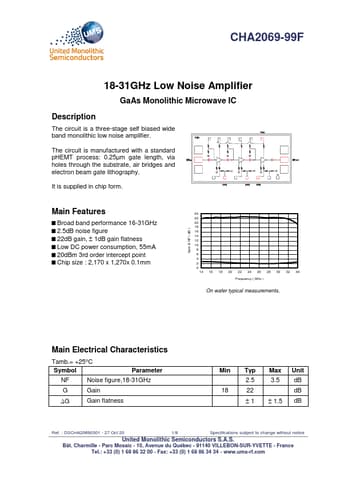

Preview of CHA2069-99F PDF
